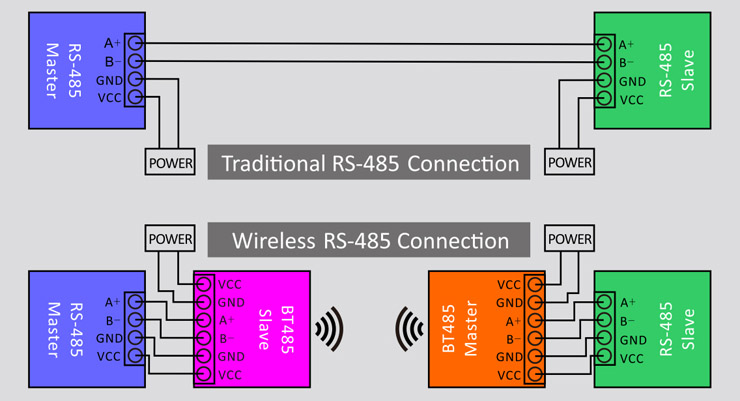

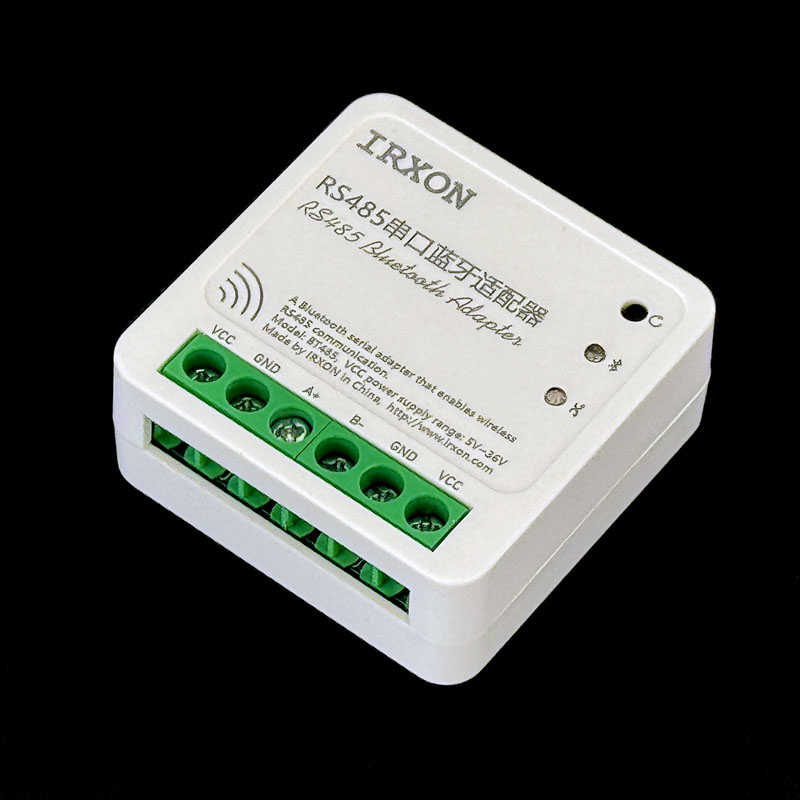

BT485 serial Bluetooth adapter can replace the traditional RS-485 cable within a range of about 100 meters, convert RS-485 connection into a Bluetooth connection, and thus realize wireless RS-485 communication.

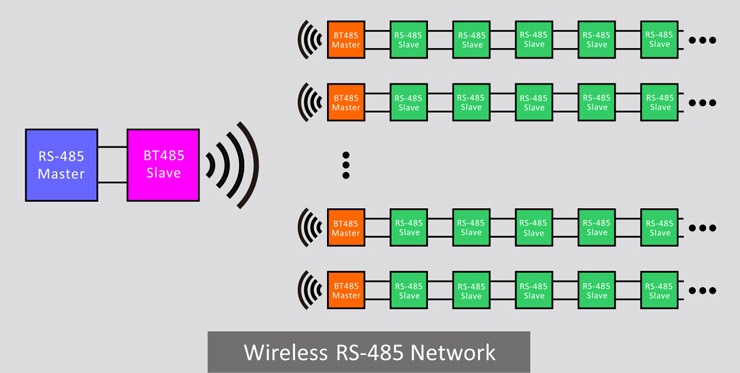

BT485 can be set as a Bluetooth master or slave by an Android app, and be used in a pair with one slave and one master, or in a network with one slave and multiple masters. The slave is connected to RS-485 master device, and the master is connected to RS-485 slave device, a BT485 slave can connect to up to 20 masters at the same time, and further connect up to 255 RS-485 slave devices through the BT485 masters.





• Adapt to RS-485 physical layer, support Modbus RTU and ASCII protocols.
• Simpler and more flexible networking than traditional wired RS-485 connection.
• The default Bluetooth role is slave, and can be set as a Bluetooth master.
• A Bluetooth slave can be connected to up to 20 Bluetooth masters at the same time.
• The BT485 Android APP can send Modbus commands for one-to-one RS-485 communication.
• Bluetooth pairing encryption can enhance the security of wireless communication.
• Fast and large data transfer ability, the max RS-485 baud rate is up to 921600 bps.
• Selectable serial communication parity check can adapt various traditional RS-485 devices.
• 10dBm transmitting power, communication distance up to 100 meters in open area.
• Built-in Watchdog, ensure long-term reliable and stable working.
• An Android app is supplied to set the adapter, without sending AT commands.
• 5V~36V wide DC power range, meet almost all power voltage of RS-485 devices.

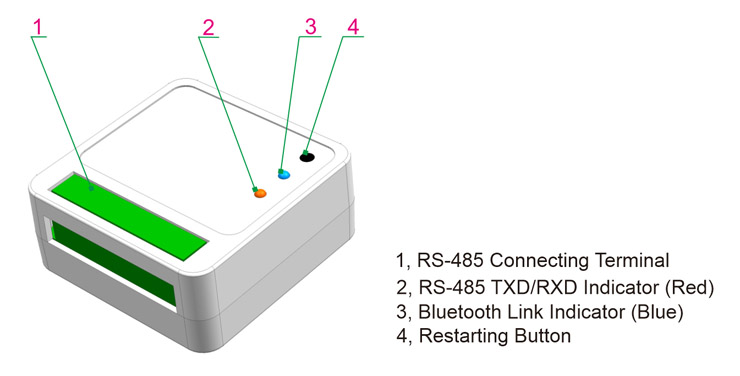

• Serial TXD/RXD indicator can display the data activity on RS-485 serial port.
