BT578: RS232 Bluetooth Adapter

Rear

 Front

Side

 Side

Test Program
Data Sheet

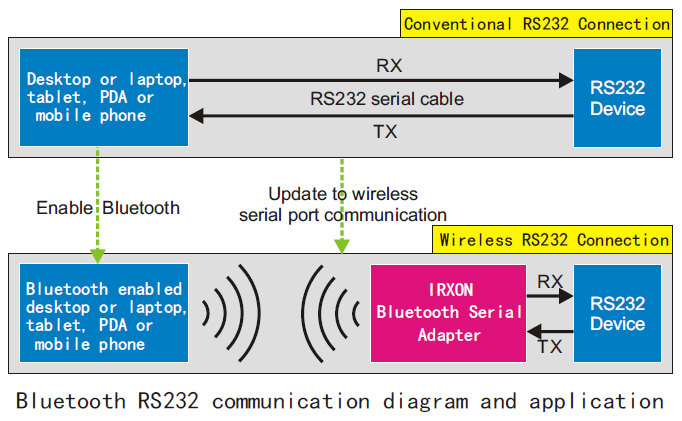

Application




Buy it now!
Description
IRXON BT578 adapter can eliminate your conventional RS232 serial cables, providing an easy-to-use, invisible connection with superior freedom of movement. This tiny adaptor allows any device with a standard 9-pin serial port to communicate wirelessly. You can communicate with another Bluetooth serial adaptor or other Bluetooth-enabled devices such as a desktop or laptop computer, tablet, PDA or mobile phone.
Features


• The adapter can be directly connected to DB9 female device, you can also connect it to DB9 male device by using a DB9 converter in the package.
• The default Bluetooth role of BT578 adapter is slave, you can change it to master role by sending AT command.
• Supports Bluetooth Serial Port Profile and Generic Access Profile. No need of drivers.
• Multiple power supply, internal 450mA Lithium Battery, external 5V DC-IN.
• Supports AT command configuration in AT command mode.

Specification
• Standard: Bluetooth SIG v2.0
• BT Profile: Bluetooth serial port profile(SPP)
• Baud Rate: 4800,9600,19200,38400,57600,115200bps
• Hopping: 1,600/sec, 1MHz channel space
• Coverage: 10 meters (line of sight)
• TX Power: 3dBm
• RX Sensitivity: -80dBm
• Current(Normal/Pairing): 8/25 mA
• Dimension and weight: 78x34x16mm 35g
Package content
• BT578 RS232 Bluetooth adapter x1
• DB9 female to female converter x1
• 220V-USB power adapter x1
• USB cable for power supply x1
• User's manual x1

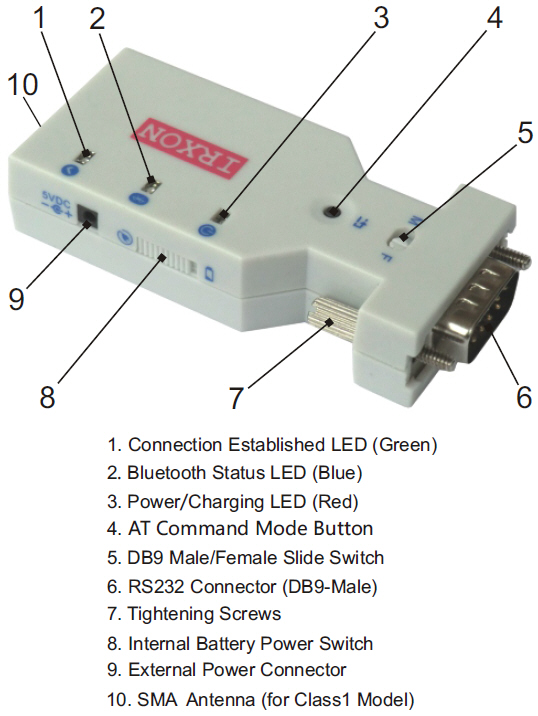

Hardware Details


BT578 DB9 Interface
